400CSF-8 Trim Flanged Gate Valve Overview

400CSF Flanged Gate Valve

The SVF 400CSF flanged gate valves are linear motion valves that perform and designed to minimize the pressure drop in applications that involve viscous liquids. Gate valves satisfy a wide range of applications in the Oil & Gas, Pharmaceuticals and Manufacturing industries.

  • Cast Steel ASTM A216-WCB
  • Class 150# Flanged Ends
  • Maximum Pressure - 285psi
  • Maximum Temperature - 1000F
  • Outside Screw & Yoke
  • API 600 Compliant
  • Standard NACE MR0175
  • Trim 8

Series Type(s): Flanged Series

Application Type(s): General Purpose

Industry Type(s): Water/Wastewater

Class Type(s): ANSI 150

Request Information

Documents

400 CSF-8 Trim 8 Flanged Gate Valve Data Sheet

Similar Products

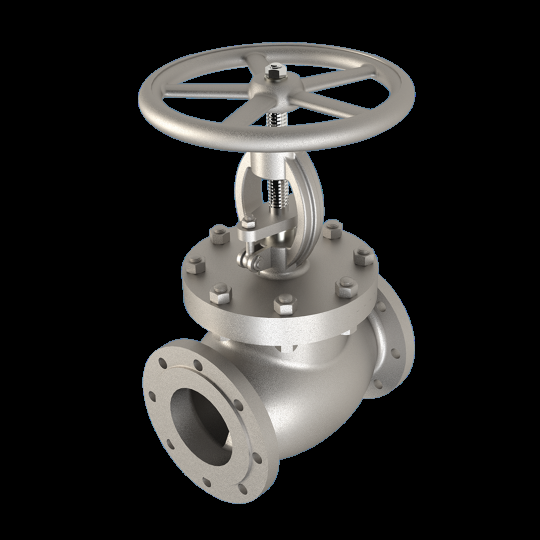

405CSF-8 Trim Flanged Globe Valve Overview 405CSF Globe Valve Trim 8
20SSFL-CSFL Flanged Ball Valve Overview 20SSFL - CSFL Flanged Ball Valve General Purpose

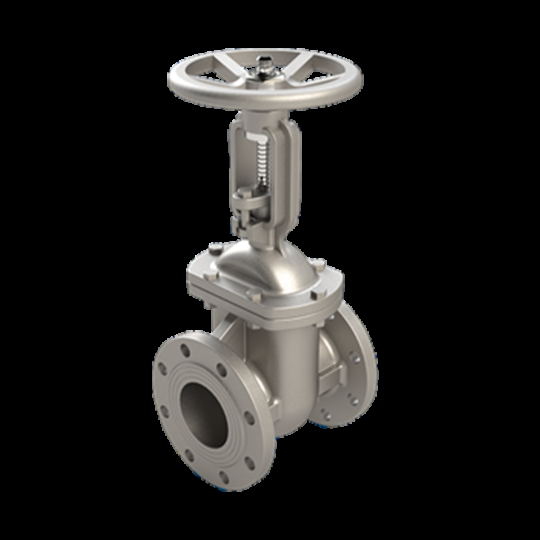

430CSF-8 Fanged Gate Valve Overview 430CSF Flanged Gate Valve Trim 8

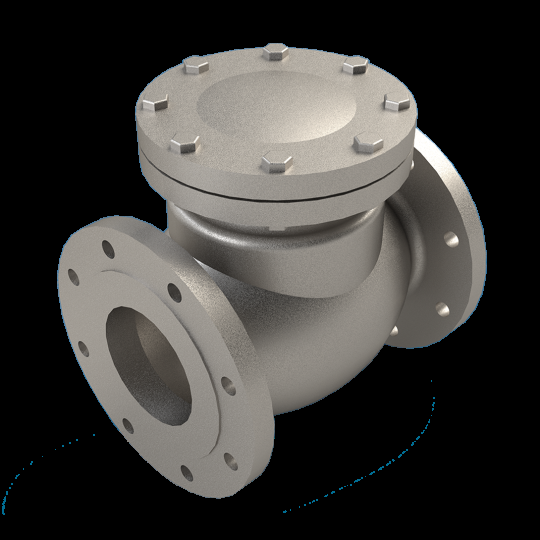

422CSF-8 Trim Flanged Swing Check Valve Overview 422CSF Flanged Swing Check Valve Trim 8
